SC-S-2410-0601

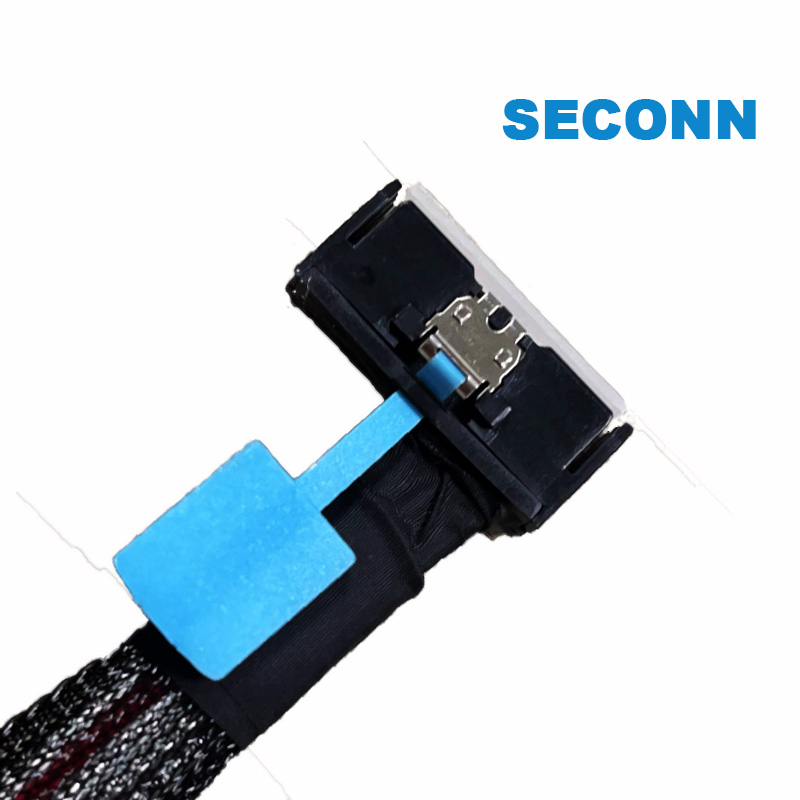

SFF-MCIO 8X to SFF-8639 SATA 68 Pin Female+ Micro-Hi 3.0mm 2x4 Pin Cable Assembly
SFF-MCIO 8X cable, SFF-8639 cable assembly, SAS 5.0 internal cable, Micro-Hi power cable, high-speed data storage cable, server backplane cable, medical imaging equipment cable, RAID array cable, SATA cable assembly, industrial server cable, custom storage connectivity solution

Product Overview
A high-speed, high-density internal cable assembly designed for advanced data and power transmission in compact, high-performance systems. This specialized harness integrates an SFF-MCIO 8X connector for SAS/SATA data with a Micro-Hi 2x4 pin connector for auxiliary power, specifically engineered for applications requiring reliable, high-bandwidth connections in space-constrained environments.

Key Features:

1. SAS 5.0/SATA Compatibility: Features SFF-8639 (68-pin) and SFF-MCIO 8X connectors supporting high-speed SAS 5.0 (up to 22.5 Gbps per lane) and SATA protocols for fast data transfer.

2. High-Fidelity Signal Integrity: Utilizes UL20744 85Ω impedance-matched SAS cable and a gold-plated PCB (90Ω impedance) to minimize signal loss and crosstalk.

3. Robust Industrial Construction: Built with durable materials including PBT+GF and PVC UL94V-0 overmolds, braided shielding sleeve, and reinforced strain relief for long-term reliability.

4. Dual-Function Design: Combines data (SFF-8639) and auxiliary power (Micro-Hi 2x4P) delivery in a single, organized harness, simplifying system integration.

5. Comprehensive Shielding: Features aluminum mylar shielding on data cables, braided sleeve overall shielding, and acetate cloth tape to protect against EMI/RFI interference.

6. 100% Electrically Tested: Guaranteed performance with open, short, miswire, continuity, contact resistance, and insulation resistance testing.

Applications:

1. Medical Imaging & Diagnostic Equipment: Connects high-speed storage arrays (HDD/SSD backplanes) to system boards in MRI, CT scanners, and ultrasound machines.

2. Enterprise Servers and Data Storage Arrays (JBOD, RAID)

3. High-Performance Computing (HPC) and Workstations

4. Network Attached Storage (NAS) and Storage Area Networks (SAN)

5. Industrial PCs and Embedded Systems for Data-Intensive Tasks

6. Telecom and Networking Equipment

Specification:
Materials:
1) Cable1: UL20744 30AWG-1P+2EAM SAS5.0 Cable Silver 85Ω
2) Cable2: UL3302 30AWG 1-0.254TC, Tinned Copper, XLPE OD=0.80mm
3) Wire Cable: UL1007 18AWG Tinned Copper, SR-PVC
4) Shell: MICO 8xHood-Plastic+Back Cover ABS+PC+Pull Strap
5) PCB: SFF-MICO 8X PCB Gold Plated 30u", Impedance 90Ω
6) Connector1: SAS 68P/F Gen5 Solder Type 180° Gold Plated 30u" Black
7) Connector2: MICRO-HI 2*4P Black(70093-0800)
8) Shrapnel: For MICO, T=0.25mm
9) Braid Tube: BRAID Sleeve OD=8.0mm, Nylon Black
10) Acetate Cloth Tape: W=30mm, T=0.24mm Black
11) Inner Mold:LDPE, Color: Transparent
12) Outer Mold1: PVC,45P Black, UL94V-0
13) Outer Mold2: PBT+20%GF, Black, UL94V-0
14) Connector- Terminal: MICRO-HI 2*4P/70097-302

Electrical Tests:
1) 100% Open, Short & Miswire Testing
2) Continuity Test: DC 300V/10MS
3) Contact Resistance: 3Ω Max
4) Insulator Resistance: 10MΩ Min

Ordering & Delivery:

1. Minimum Order Quantity (MOQ): 500 pieces

2. Lead Time: 5–6 weeks after order confirmation

3. Payment Terms: T/T or PayPal

4. Shipping Terms: EXW Taiwan
